Analog Column Type Load Cell

Payment Type: T/T,D/P
Delivery Time: 45 Days

Basic Info

Model No.: CZL-YB-××-ST(-D)

Additional Info

Transportation: Ocean,Air

Place of Origin: China

Port: Qingdao,Shanghai

Product Description

CZL-YB-××-ST (-D) type load cell is full sealing double ball head column type structure. It uses stainless steel material, and has good automatic center adjusting and anti-rotation function, good dynamic response, strong anti-overload capacity, uses metal diaphragm welding sealing technology, its waterproof and dust proof capacity reaches the requirements of IP68 and IP69K level. It can suit adverse working environment, and has advantages such as high accuracy, convenient installation and repair and reliable operation. It has capacity from 10t to 50t, and can be used for producing various scales such as digital electronic truck scale, dynamic railway scale and large capacity hopper scale. Its explosion proof label is Exia II CT6Ga; ExiaD20T85. CZL-YB-××-ST-D type load cell is installed with metal net anti-mouse bite double shield cable, and has anti-mouse bite function.double shield cable, and has anti-mouse bite function.

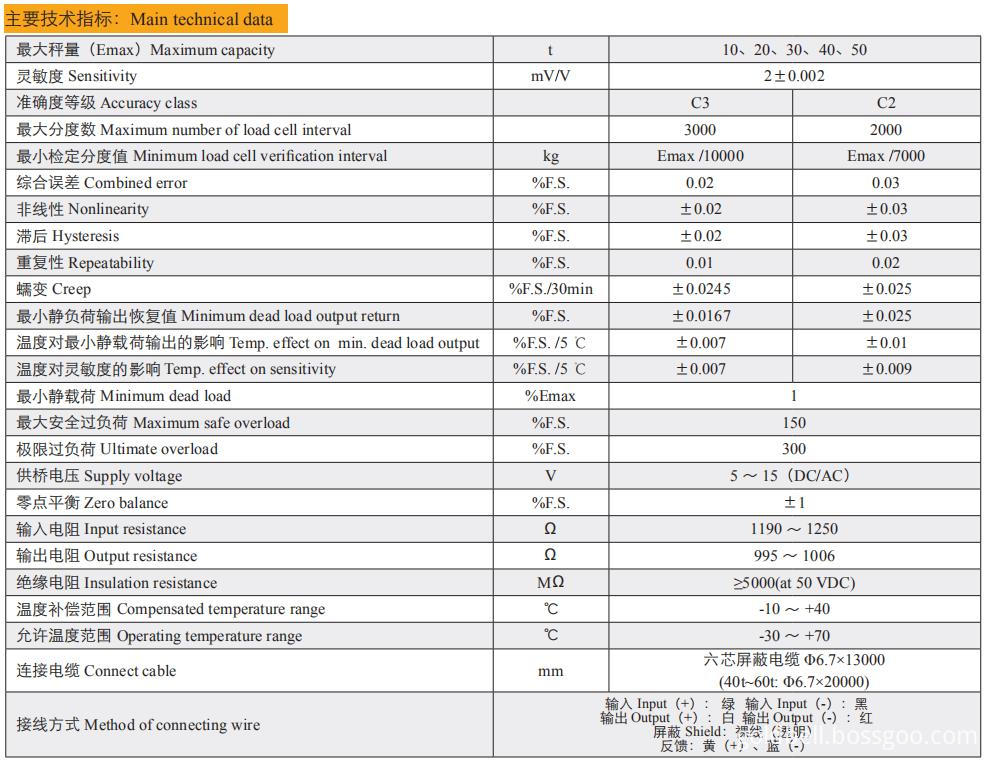

Technical Data of CZL-YB-××-ST(-D)

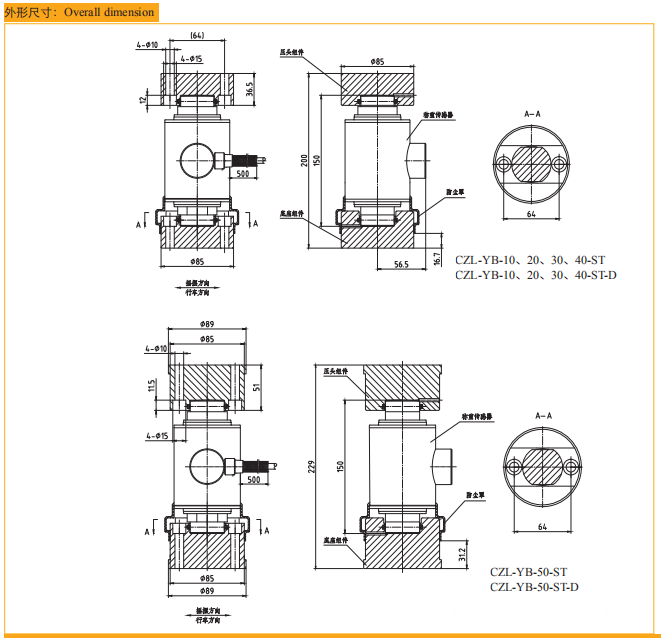

Drawing of CZL-YB-××-ST(-D)
