CZE-YB High Temperature Column Load Cell

Payment Type: T/T,D/P
Min. Order: 10 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: CZE-YB

Pattern: Column Cylinder Type

Transform Type: Resistance Strain

Out-Wire: 6-Wire

Output Signal Type: Analog Type

Feature: Corrosion Resistant

Production Process: Integration

Material: Metal

IP Rating: IP65

Certification: OIML

Customized: Non-Customized

Additional Info

Productivity: 100 sets/month

Brand: Goldbell

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100 sets/month

Certificate: ISO9001

HS Code: 8423900010

Port: Qingdao,Shanghai

Product Description

CZE-YB type column load cell (made of alloy steel) is hermetically sealed. It is argon-arc welded and can bear
compression forces. It has good dynamic reaction, quick response, good anti-overload, easy installation and use.This kind
of load cell can be used in the production procedures with certain temperature requirements in the metallurgical and chemical
industries. According to different requirements of operating conditions, it can be produced high temperature load cells applied to the
temperatures below 180℃ .

Our company also produces strain gauge, weighing indicator and other scale such as truck scale, platform scale and hopper scale.

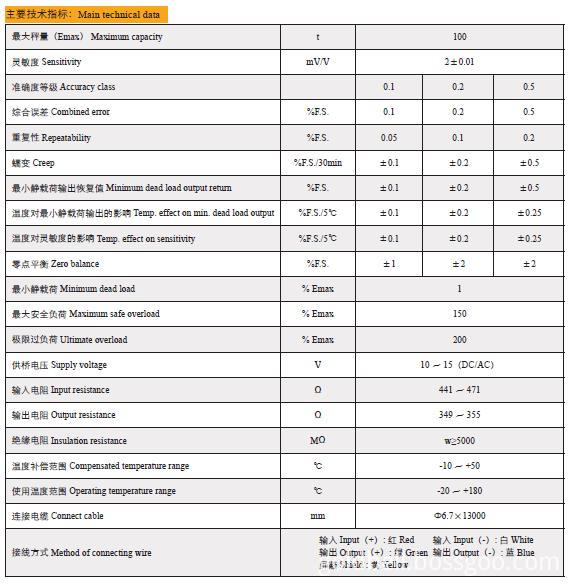

Technical Data of CZE-YB high temperature load cell

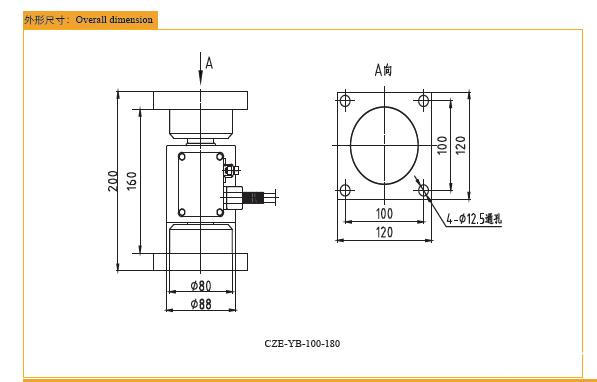

Drawing of CZE-YB high temperature load cell
