CZL-YB Type High Temperature Load Cell

Payment Type: T/T,D/P
Min. Order: 10 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: CZL-YB

Pattern: Column Cylinder Type

Transform Type: Resistance Strain

Out-Wire: 6-Wire

Output Signal Type: Analog Type

Feature: Corrosion Resistant

Production Process: Integration

Material: Metal

IP Rating: IP65

Certification: OIML

Customized: Non-Customized

Additional Info

Productivity: 100 sets/month

Brand: Goldbell

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100 sets/month

Certificate: ISO9001

HS Code: 8423900010

Port: Qingdao,Shanghai

Product Description

CZL-YB type high temperature load cell has same mechanic structure and installation size of CZL-YB type load
cell. It uses full sealing double ball head structure, and has good automatic center adjusting function. It uses argon arc welding.
Its bearing form is compression type. It has good dynamic response, strong anti-overload capacity, easy installation and convenient
operation.The load cell can be used in the production processes with certain temperature requirements in the metallurgical and
chemical industries. According to different requirements of operating conditions, it can be produced high temperature load cells
applied to the temperatures such as 105℃ and 180℃ .

Our company also produces strain gauge, weighing indicator and other scale such as truck scale, platform scale and hopper scale.

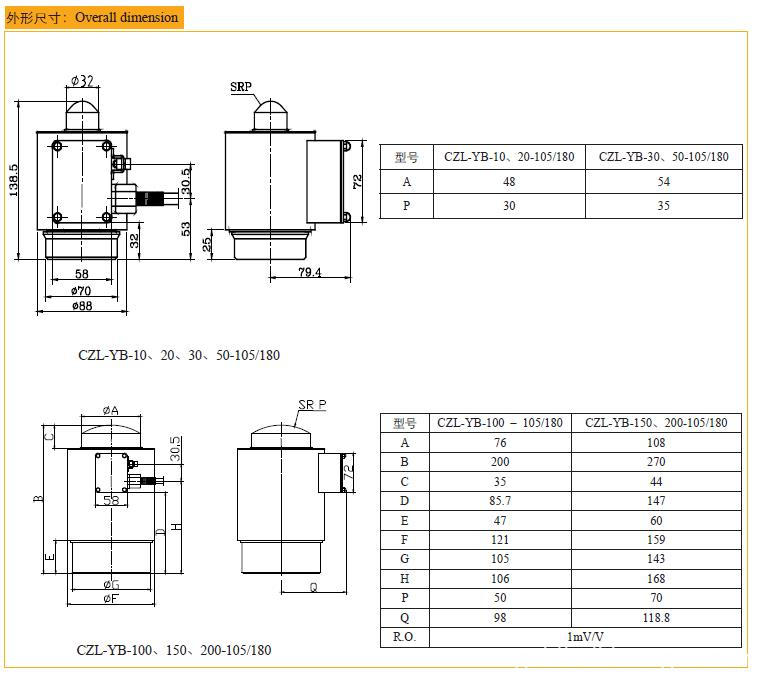

Drawing of CZL-YB high temperature load cell

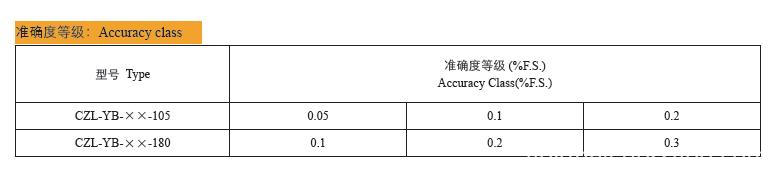

Technical Data of CZL-YB high temperature load cell
