CZL-YB-××-L Spoke Load Cell

Payment Type: T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 10 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: CZL-YB-××-L

Pattern: Spoke Type

Transform Type: Resistance Strain

Out-Wire: 6-Wire

Output Signal Type: Analog Type

Feature: Corrosion Resistant

Production Process: Integration

Material: Metal

IP Rating: IP65

Certification: OIML

Customized: Non-Customized

Additional Info

Transportation: Ocean,Air

Port: Qingdao,Shanghai

Product Description

CZL-YB-××-L series load cell is spoke type structure, and is produced by alloy steel. Its bearing form is compression type. It has various features such as low height, convenient installation and operation, strong anti-overload capacity and small power consumption, and has the capacity from 1t to 50t. It uses inside glue sealing, has excellent damp proof and anti-corrosion proof performances, and can be used in adverse environment. It is suitable for explosive danger fields, and has product explosion-proof label Exia II CT6Ga; ExiaD20T85. It can be used for producing electronic scales such as electronic truck scale and hopper scale.

Our company also produces strain gauge, weighing indicator and other scale such as truck scale, platform scale and hopper scale.

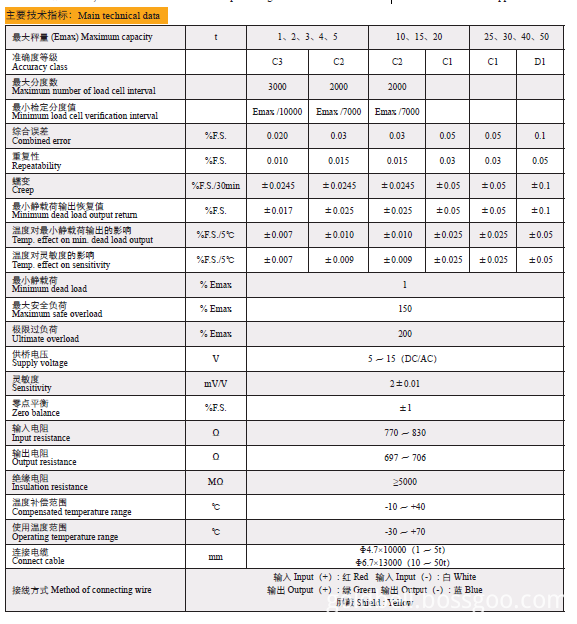

Technical Data of CZL-YB-××-L

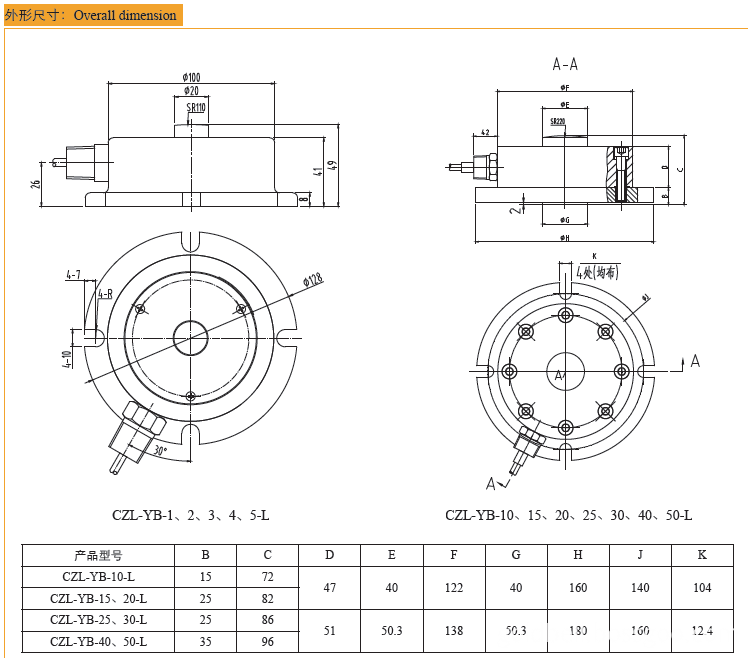

Drawing of CZL-YB-××-L
