BM-LS Shear Beam Load Cell

Payment Type: T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 10 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: BM-LS

Pattern: Bridge Type

Transform Type: Resistance Strain

Out-Wire: 6-Wire

Output Signal Type: Analog Type

Feature: Corrosion Resistant

Production Process: Integration

Material: Metal

IP Rating: IP65

Certification: OIML

Customized: Non-Customized

Additional Info

Productivity: 100 sets/month

Brand: Goldbell

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100 sets/month

Certificate: ISO9001

HS Code: 8423900010

Port: Qingdao,Shanghai

Product Description

BM-LS type load cell has peculiar structure of both ends supporting, center forced. This structure enable the load cell to be high accuracy, high reliability in measuring.Force is transferred by pressure head and steel ball which can automatically recover and correct core. The elastic body is made of alloy steel. Cross-range force and impulsive force can be well resisted. Sealed hermetically with damp-proof material, the load cell can work properly in adverse circumstances and has protection grade specified as IP68. It is used to be explosive dangerous circumstance, the explosion-proof symbol is Exia II CT6Ga; ExiaD20T85.It has good compatibility and can be conveniently installed. Suitable for truck scale, track scale, hopper scale, and other special scales for weighing and force measurement. It has received the NTEP certificate.

Our company also produces strain gauge, weighing indicator and other scale such as truck scale, platform scale and hopper scale.

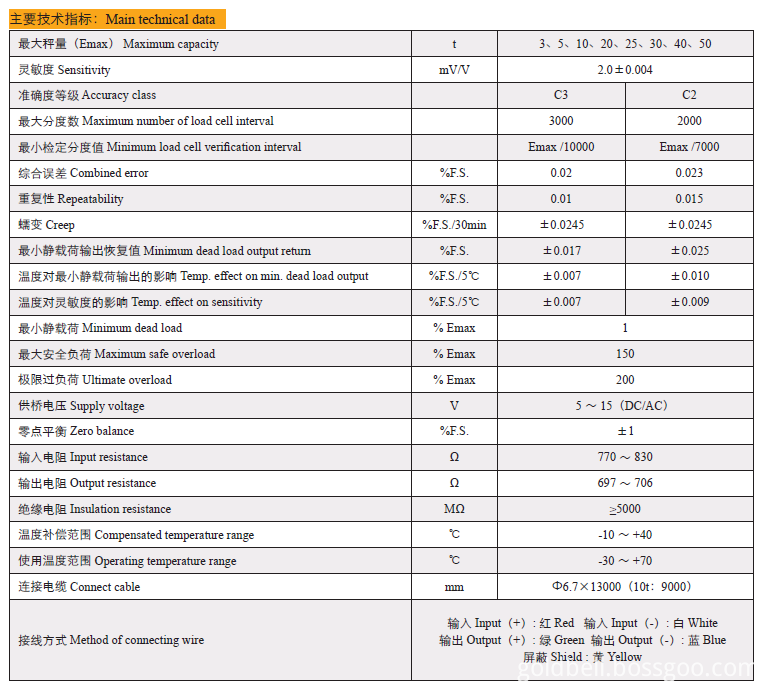

Techncial Data Of Bm Ls

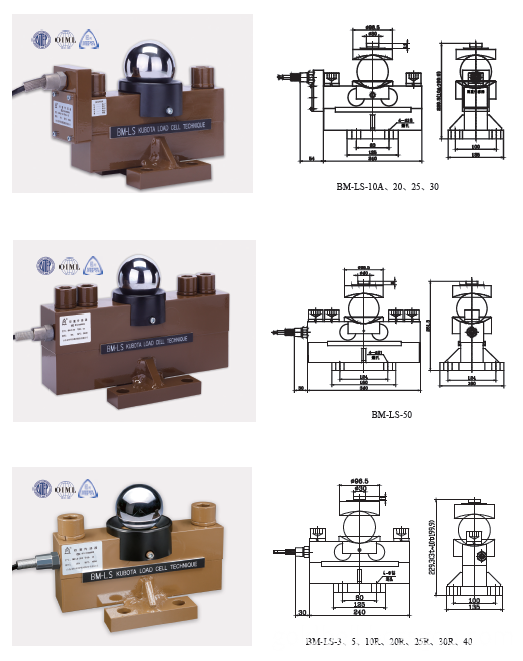

Drawing of BM-LS
