BM-LS-××-MF1 Shear Beam Load Cell

Payment Type: T/T,D/P
Min. Order: 10 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: BM-LS-××-MF1

Additional Info

Transportation: Ocean,Air

Port: Qingdao,Shanghai

Product Description

BM-LS -××-MF1 type load cell has peculiar structure of both ends supporting, center forced. This structure enables the load cell to have high accuracy, high reliability in measuring. Force is transferred by pressure head and steel ball which can automatically recover and correct the center. The elastic body is made of alloy steel. Crossrange force and impulsive force can be well resisted. Sealed hermetically with cavity cap welding, the load cell can work properly in adverse circumstances and has protection grade specified as IP68. It is able to be used in explosive dangerous circumstance, the explosion-proof symbol is Exia II CT6Ga; ExiaD20T85.It has good compatibility and can be conveniently installed. Suitable for truck scale, railway scale, hopper scale, and other special scales for weighing and force measurement.

Our company also produces strain gauge, weighing indicator and other scale such as truck scale, platform scale and hopper scale.

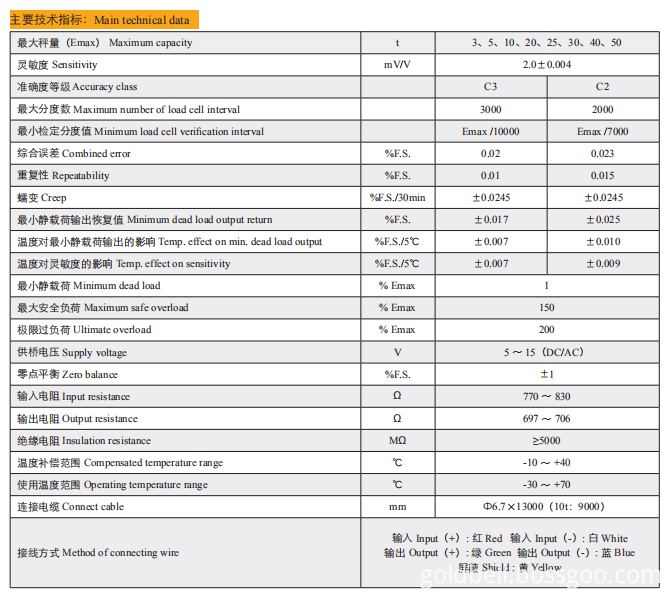

Technical Data of BM-LS-××-MF1

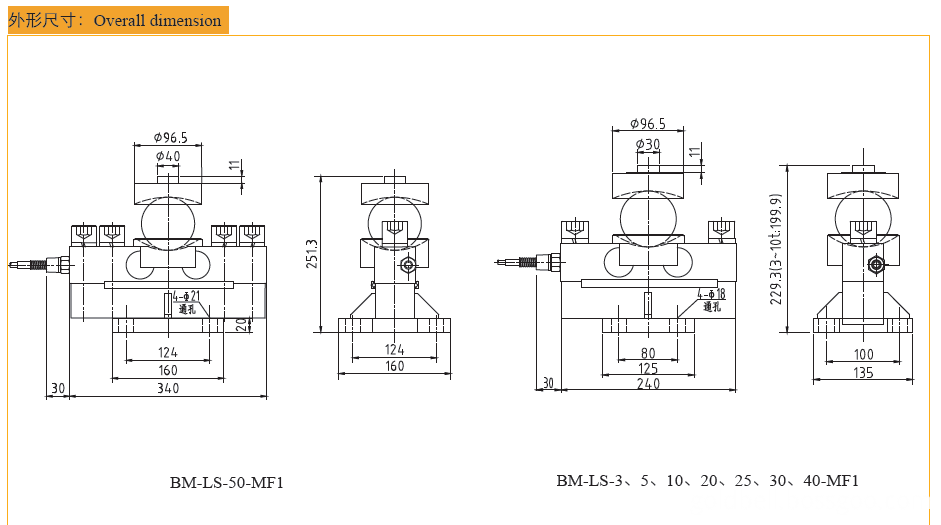

Drawing of BM-LS-××-MF1
