CZL-YB Column Load Cell

Payment Type: T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Delivery Time: 45 Days

Basic Info

Model No.: CZL-YB

Pattern: Bridge Type

Transform Type: Resistance Strain

Out-Wire: 6-Wire

Output Signal Type: Analog Type

Feature: Corrosion Resistant

Production Process: Integration

Material: Metal

IP Rating: IP65

Certification: OIML

Customized: Non-Customized

Additional Info

Transportation: Ocean,Air

Place of Origin: China

Port: Qingdao,Shanghai

Product Description

CZL-YB type (made of alloy steel) column load cell is hermetically sealed,and has protection grade specified as IP68 and IP69K.

It has high ability to correct the center. Argon-arc welded, taking compression force, its dynamic reaction is good. Easily installed.It is able to be used in explosive dangerous circumstance, the explosion-proof symbol is Exia II CT6Ga; ExiaD20T85. It can be highly over-loaded and used in truck scale, dynamic railway scale, hopper scale and so on.

Our company also produces strain gauge, weighing indicator and other scale such as truck scale, platform scale and hopper scale.

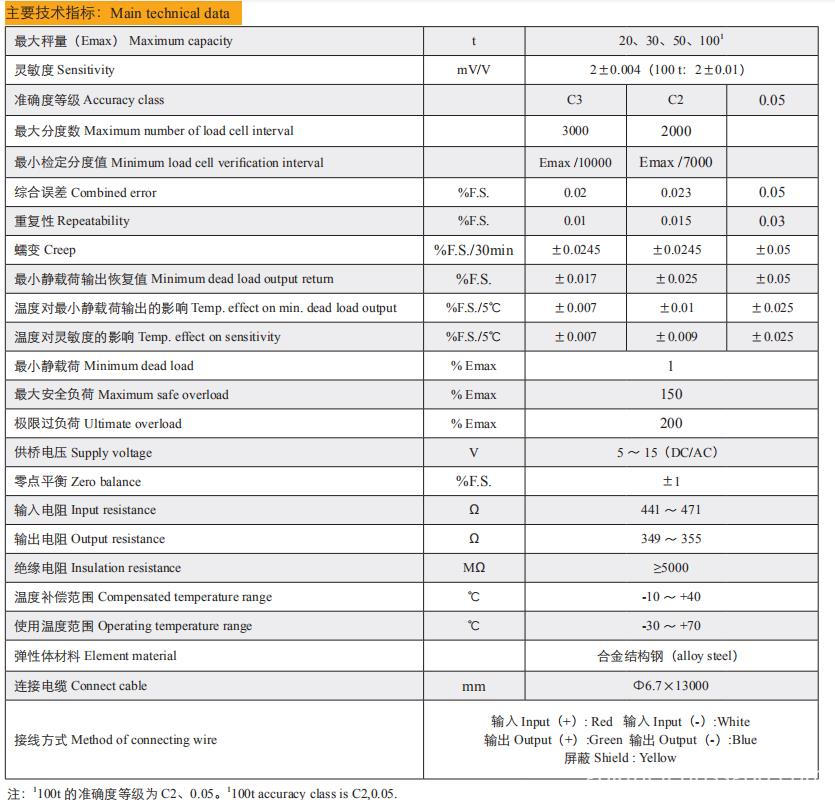

Technical Data of CZL-YB

Drawing of CZL-YB
