CZL-YB-××-ST1 Column Load Cell

Payment Type: T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Delivery Time: 45 Days

Basic Info

Model No.: CZL-YB-××-ST1

Pattern: Bridge Type

Transform Type: Resistance Strain

Out-Wire: 6-Wire

Output Signal Type: Analog Type

Feature: Corrosion Resistant

Production Process: Integration

Material: Metal

IP Rating: IP65

Certification: OIML

Customized: Non-Customized

Additional Info

Transportation: Ocean,Air

Place of Origin: China

Port: Qingdao,Shanghai

Product Description

CZL-YB-××-ST1 type load cell is full sealing double ball head column type structure. It uses stainless steel material, and has good automatic center adjusting and anti-rotation function, good dynamic response, strong anti-overload capacity, uses metal diaphragm welding sealing technology, its waterproof and dust proof capacity reaches the requirements of IP 68 and IP69K level. It can suit adverse working environment, and has advantages such as high accuracy, convenient installation and repair and reliable operation. It has capacity from 10t to 60t, and can be used for producing various scales such as digital electronic truck scale, dynamic railway scale and large capacity hopper scale.Its explosion proof label is Exia II CT6Ga; ExiaD20T85.

Our company also produces strain gauge, weighing indicator and other scale such as truck scale, platform scale and hopper scale.


Technical Data of CZL-YB-××-ST(-D)

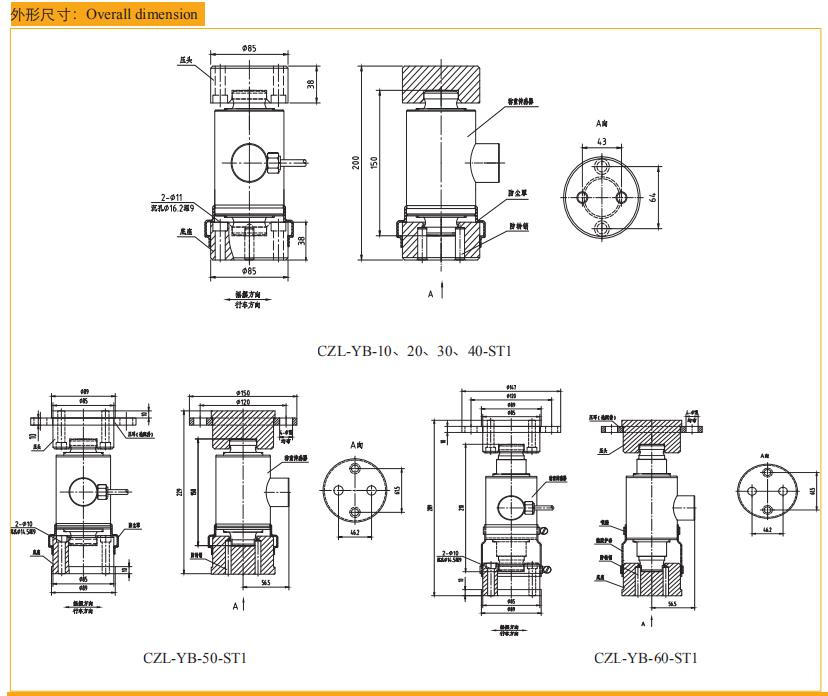

Drawing of CZL-YB-ST1
