B-XG Parallel Beam Load Cell

Payment Type: T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 10 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: B-XG

Transform Type: Resistance Strain

Out-Wire: 6-Wire

Output Signal Type: Analog Type

Feature: Corrosion Resistant

Production Process: Integration

Material: Metal

IP Rating: IP65

Certification: OIML

Customized: Non-Customized

Pattern: Plate Ring Type

Additional Info

Transportation: Ocean,Air

Port: Qingdao,Shanghai

Product Description

B-XG type box load cell (made of aluminum alloy) has a one-point structure. Corner adjustment assures same output from different point on ruled surface when it is loaded. It is suitable for single load-cell scale such as platform scale, health scale.

This kind of load cell is easily installed and convenient to use, and has protection grade specified as IP67. It is able to be used in explosive dangerous circumstance, the explosion-proof symbol is Exia II CT6Ga; ExiaD20T85.

Our company also produces strain gauge, weighing indicator and other scale such as truck scale, platform scale and hopper scale.

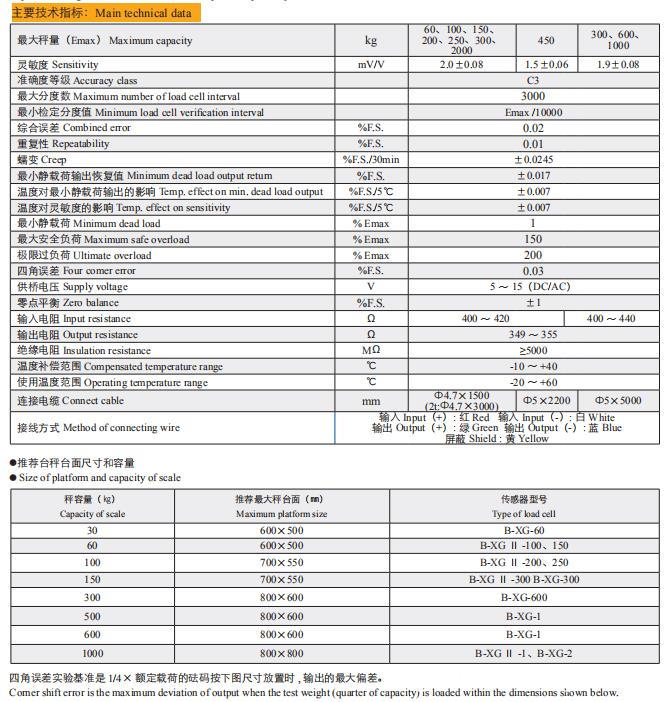

Technical Data of B-XG

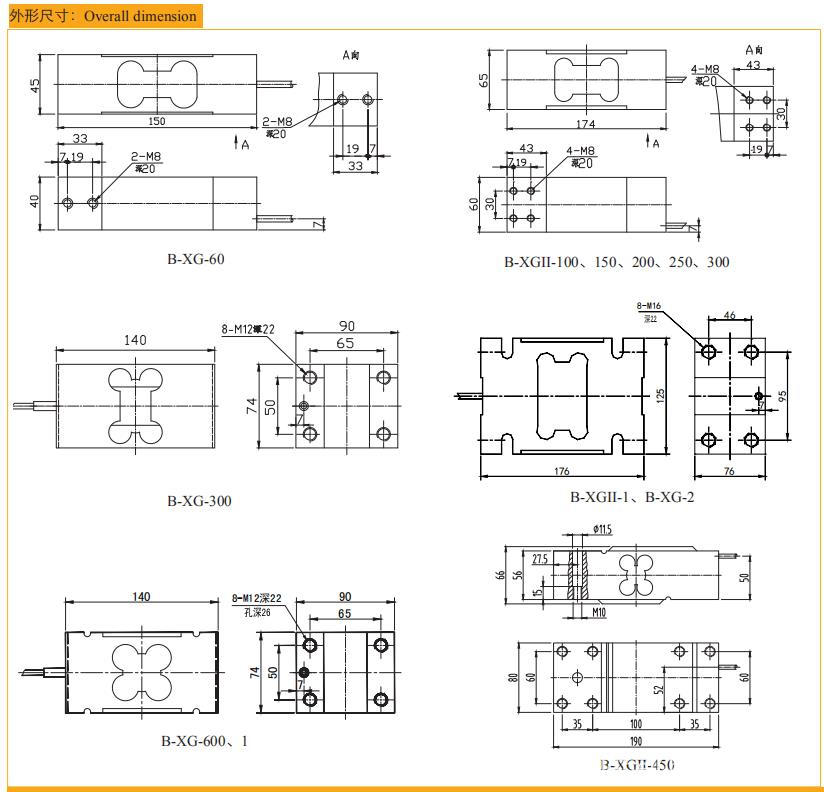

Drawing of B-XG
